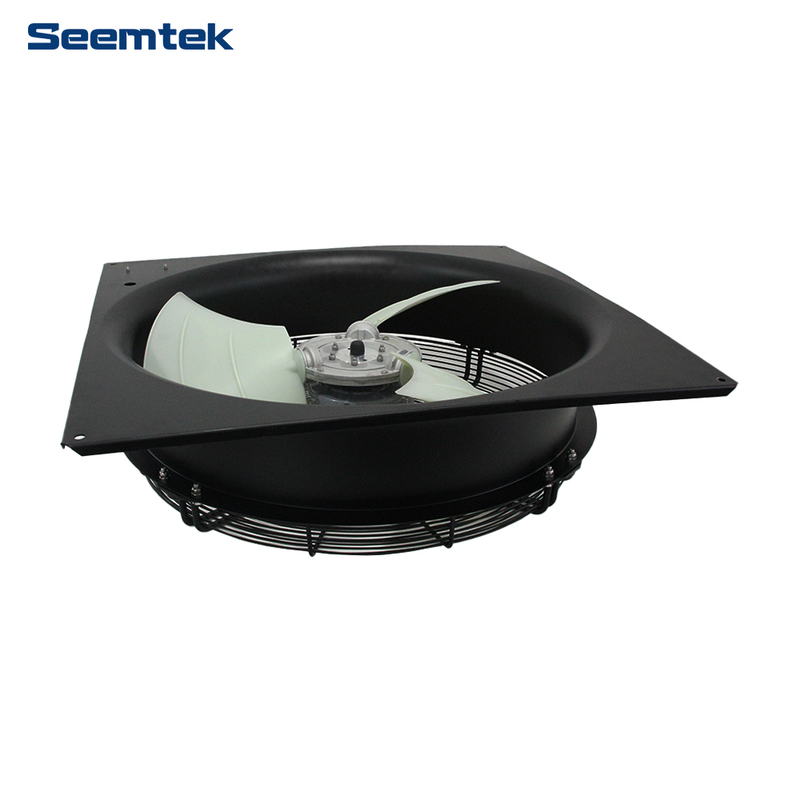

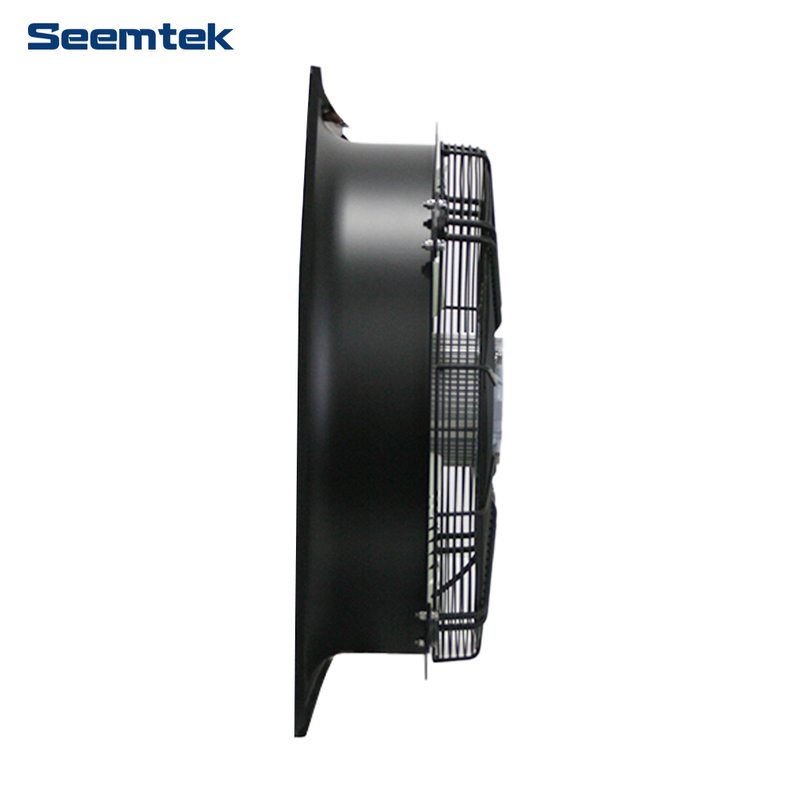

800mm AC 380V Low Noise Axial Fan with Motorized Plastic Impeller

Voltage Type: AC

Motor Type: Inner Rotor AC 3-phase Motor

Impeller Diameter: 800mm

Impeller Material: Plastic

Protection Type: IP55

Insulation Class: F

Operation Temperature : - 40 ℃ ~ +60 ℃

Motor Protection: Over-temperature

INQUIRY US DATA SHEET

Technical Parameters

Model No.	Bearing System	Rated Voltage	Frequency	Rated Current	Rated Power	Rated Speed	Air Flow	Air Pressure	Noise Level
Model No.	B/S	VAC	Hz	A	W	RPM	M³/H	Pa	dBA
G3A-3A800-LN-01	Ball	380	50/60	4. 2	1800	945	20000	80	70. 5

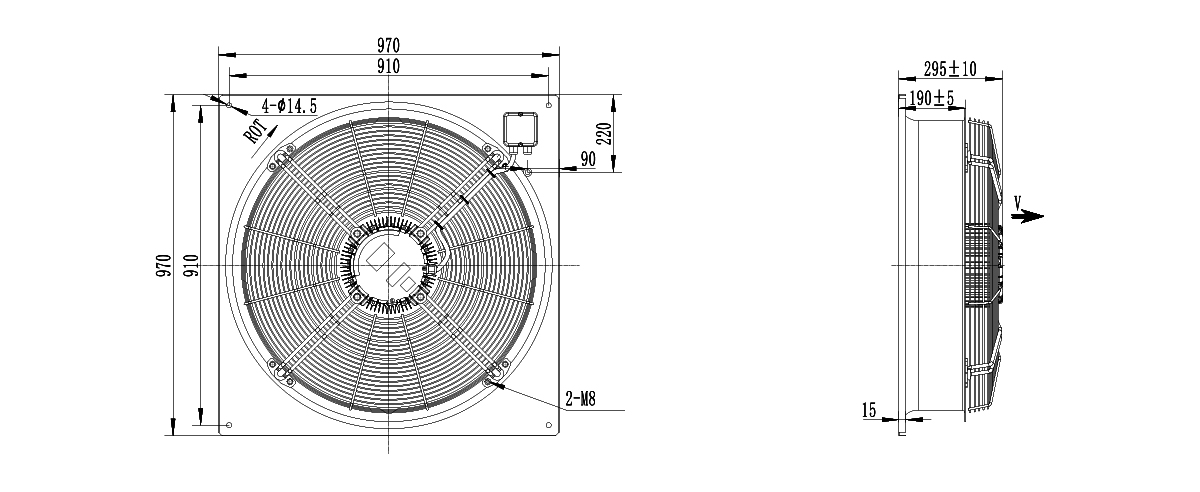

Outline Drawing

800

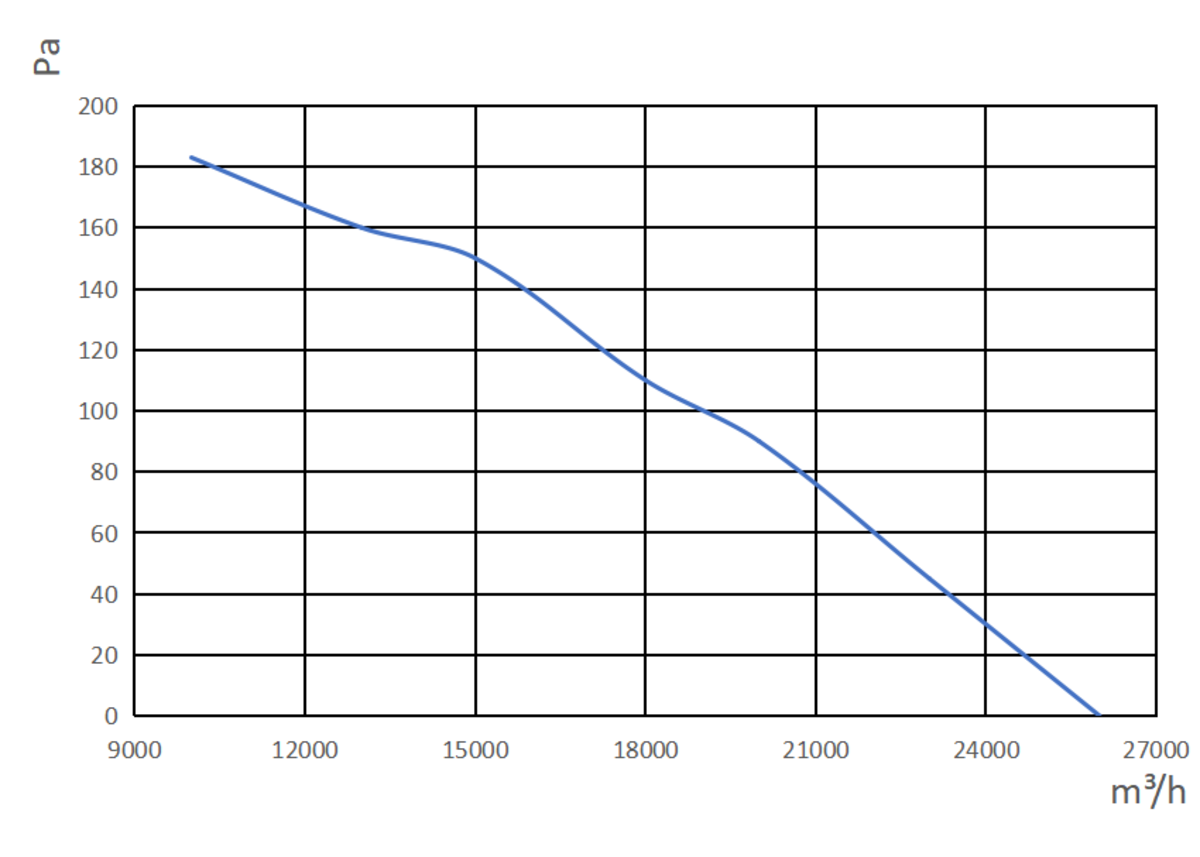

Performance Curve

G3A-3A800-LN-01
