Voltage Type: DC
Motor Type: BLDC External Rotor Motor
Impeller Diameter: 133mm
Impeller Material: PA Plastic + Glass Fiber
Speed Control: 0-10VDC/PWM
Protection Type: IP44
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Locked-Rotor Protection, Reverse Polarity Protection, Thermal Protection, Soft Start
| Model No. | Bearing System | Rated Voltage | Operating Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VDC | VDC | A | W | RPM | m³/h | Pa | dBA | |
| B3D-24133-S7-00 | Ball | 24 | 16~28 | 1.2 | 28 | 3800 | 380 | 343 | 63 |
| B3D-48133-S7-00 | Ball | 48 | 36~57 | 0.6 | 28 | 3800 | 380 | 343 | 63 |
| B3D-24133-S7-01 | Ball | 24 | 16~28 | 1.7 | 40 | 4450 | 425 | 492 | 74 |
| B3D-48133-S7-01 | Ball | 48 | 36~57 | 0.85 | 40 | 4450 | 425 | 492 | 74 |

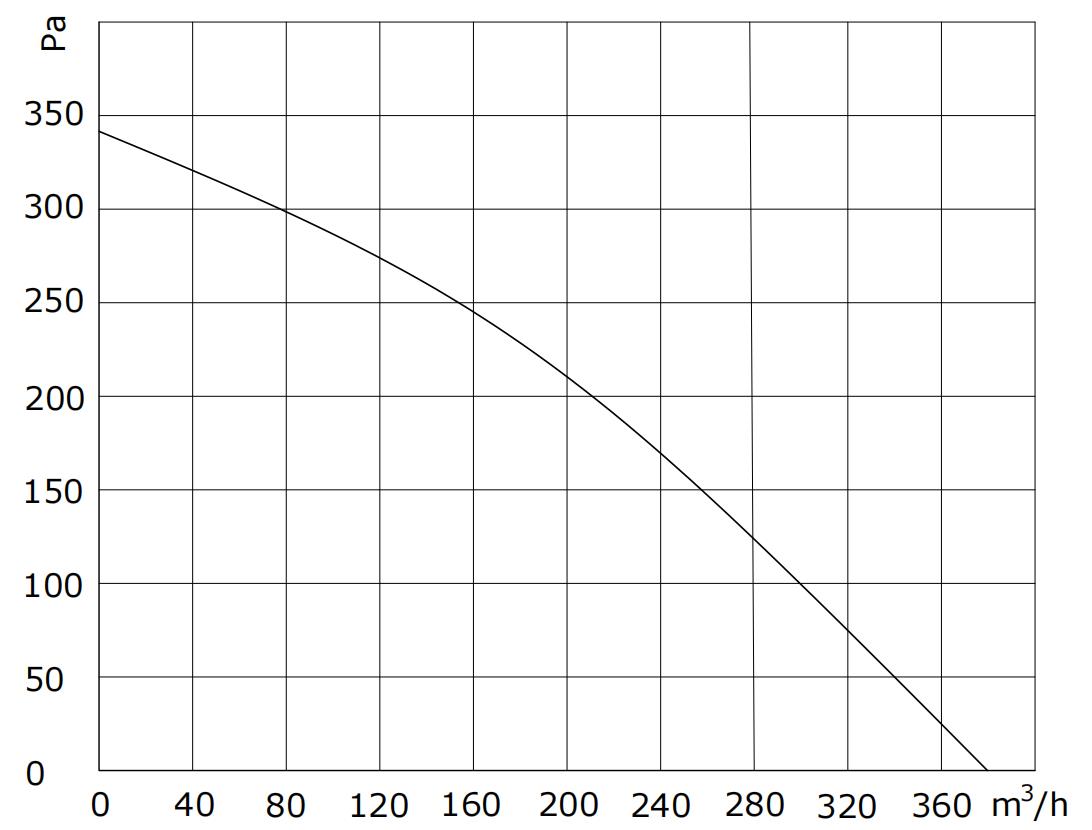

B3D-24133-S7-00/B3D-48133-S7-00 P-Q

B3D-24133-S7-01/B3D-48133-S7-01 P-Q
