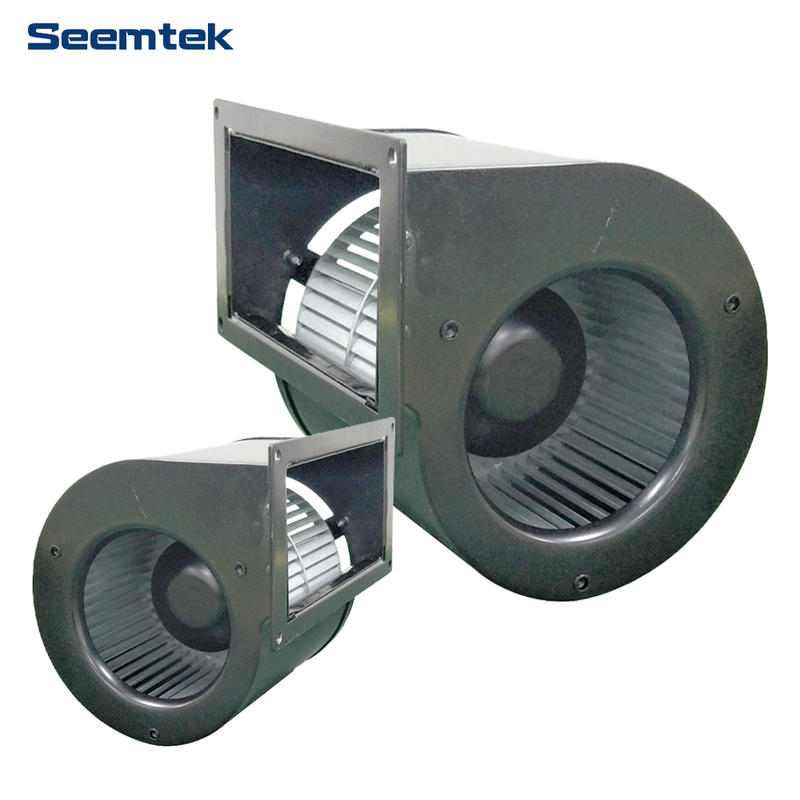

Model No. S3D-24120-A7-02
Voltage Type: 24VDC
Motor Type: DC Brushless External Rotor Motor
Impeller Diameter: 120mm
Impeller Material: PA66
Housing Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP42
Insulation Class: F
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Over-temperature, Over-current, Locked Protected
| Model No. | Bearing System | Rated Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VDC | A | W | RPM | M³/H | Pa | dBA | |
| S3D-24120-A7-02 | Ball | 24 | 3. 95 | 95 | 2400 | 350 | 330 | 60 |
