Model No. D3D-3D133-A9-03
Voltage Type: 310VDC
Motor Type: DC Brushless External Rotor Motor
Impeller Diameter: 133mm
Impeller Material: Galvanized Steel
Housing Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP42
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Over-temperature, Over-current, Locked Protected

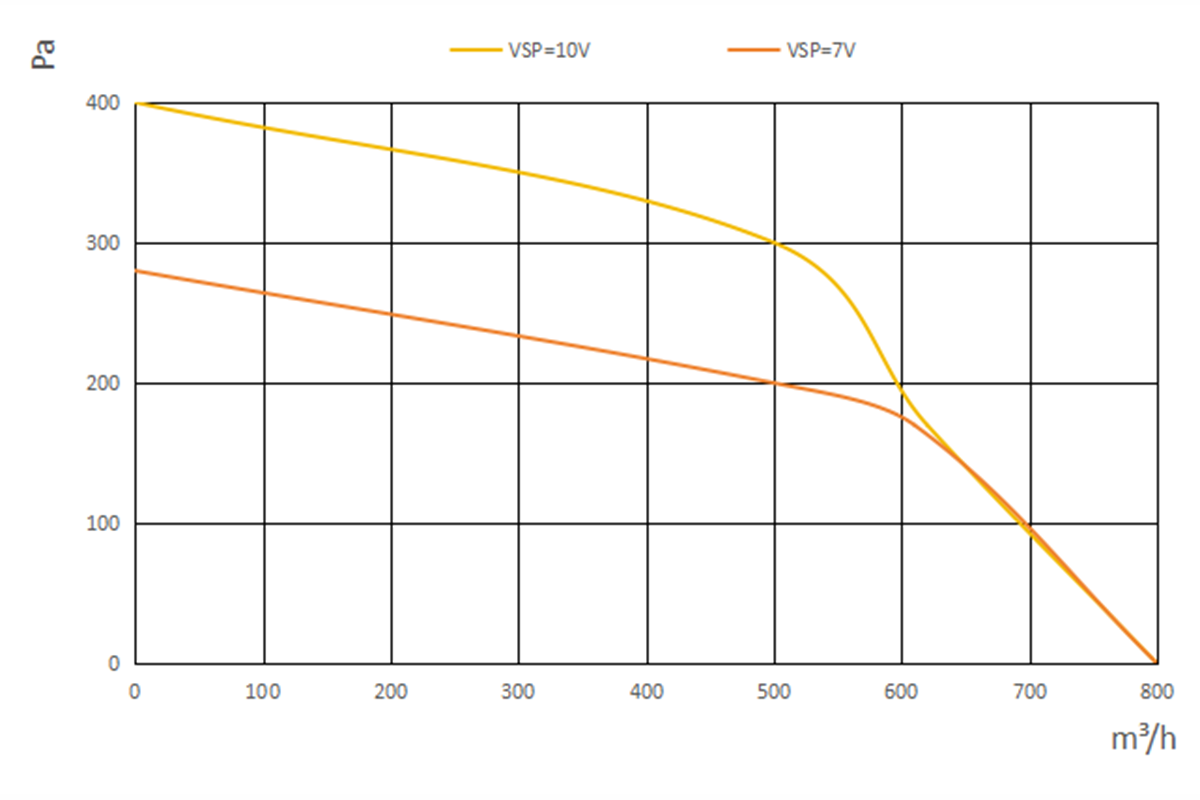

| Model No. | Bearing System | Rated Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VDC | A | W | RPM | M³/H | Pa | dBA | |
| D3D-3D133-A9-03 | Ball | 310 | 0. 52 | 160 | 1950 | 800 | 400 | 69 |
