Voltage Type: DC
Motor Type: BLDC External Rotor Motor
Impeller Diameter: 310mm
Impeller Material: Aluminum
Mounting Bracket: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP44
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Locked-Rotor Protection, Reverse Polarity Protection, Thermal Protection, Soft Start

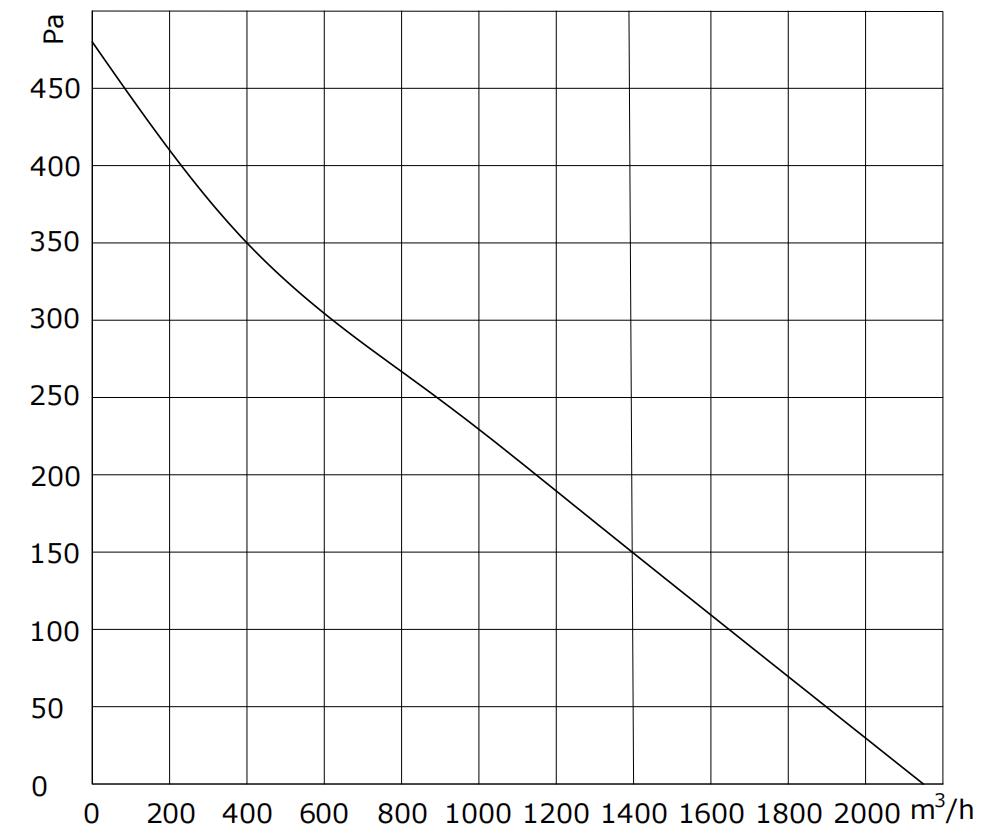

| Model No. | Bearing System | Rated Voltage | Operating Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VDC | VDC | A | W | RPM | m³/h | Pa | dBA | |
| K3D-24310-M9-00 | Ball | 24 | 16~28 | 5.2 | 125 | 1600 | 2150 | 480 | 64 |
| K3D-48310-M9-00 | Ball | 48 | 36~57 | 2.6 | 125 | 1600 | 2150 | 480 | 64 |
