Voltage Type: DC
Motor Type: BLDC External Rotor Motor
Impeller Diameter: 200mm
Impeller Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP44
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Locked-Rotor Protection, Reverse Polarity Protection, Thermal Protection, Soft Start

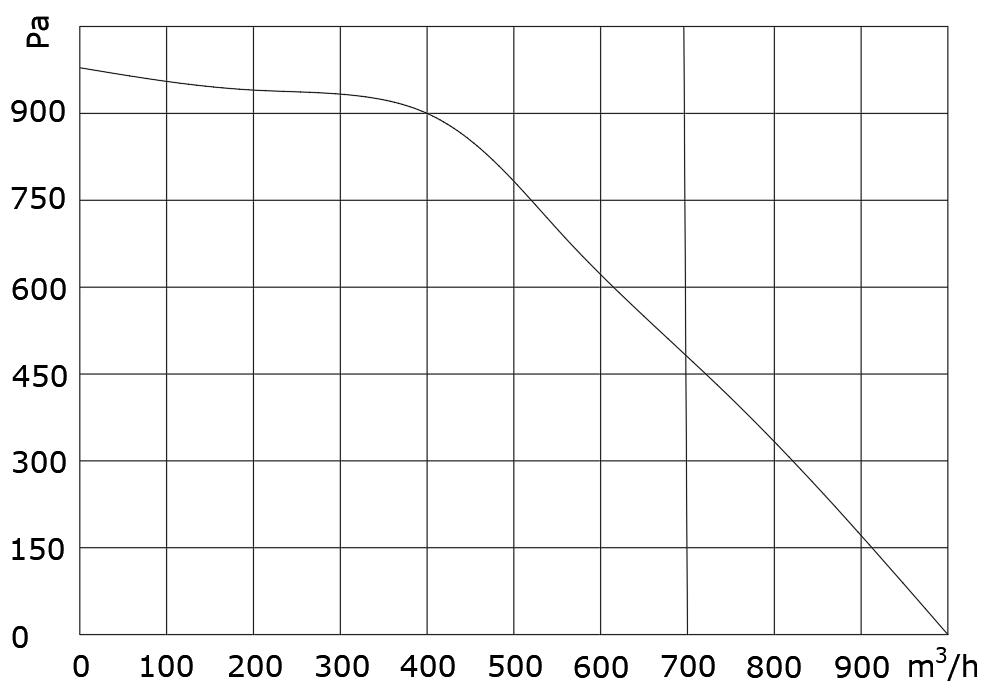

| Model No. | Bearing System | Rated Voltage | Operating Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VDC | VDC | A | W | RPM | m³/h | Pa | dBA | |
| F3D-48200-S9-00 | Ball | 48 | 36~57 | 4.6 | 220 | 1600 | 1000 | 980 | 74 |
