Voltage Type: AC
Impeller Diameter: 500mm
Impeller Material: Sheet Aluminum

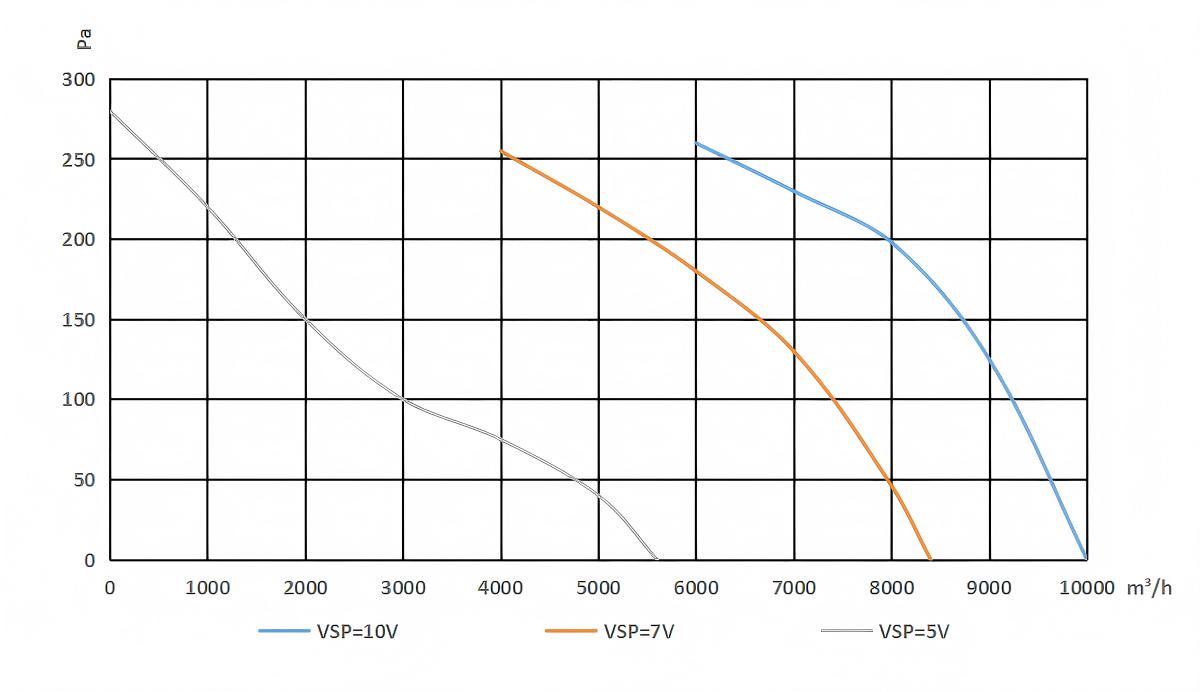

Speed Control: 0-10VDC
Protection Type: IP54
Operation Mode: S1
Bearing: Maintenance-free Ball Bearings
Operation Temperature : - 30 ℃ ~ +60 ℃
Insulation Class: F
| Model No. | Bearing System | Rated Voltage | Frequency | Current draw | Power input | Speed | Air Flow | Noise Level |
| B/S | VAC | Hz | A | W | RPM | M³/H | dBA | |
| *3E-3A500-A3-0* | Ball | 380 | 50/60 | 2.3 | 1250 | 1900 | 10000 | 75 |
