Voltage Type: AC
Motor Type: BLDC External Rotor Motor
Impeller Diameter: 450mm
Impeller Material: Aluminum
Speed Control: 0-10VDC
Protection Type: IP54
Insulation Class: F
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Locked-Rotor Protection, Reverse Polarity Protection, Thermal Protection, Soft Start
| Model No. | Rated Voltage | Rated Current | Rated Power | Speed | Air Flow | Air Pressure | Noise Level | Curve |
| VAC | A | W | RPM | m³/h | Pa | dBA | ||
| B3E-3A450-Y3-01 | 380 | 2. 73 | 1350 | 1720 | 7455 | 785 | 79 | A |
| B3E-3A450-Y8-14 | 380 | 5. 4 | 2655 | 2405 | 7483 | 1456 | 80 | B |
| B3E-3A450-Y8-15 | 380 | 7. 1 | 3590 | 2746 | 8304 | 1881 | 83 | C |

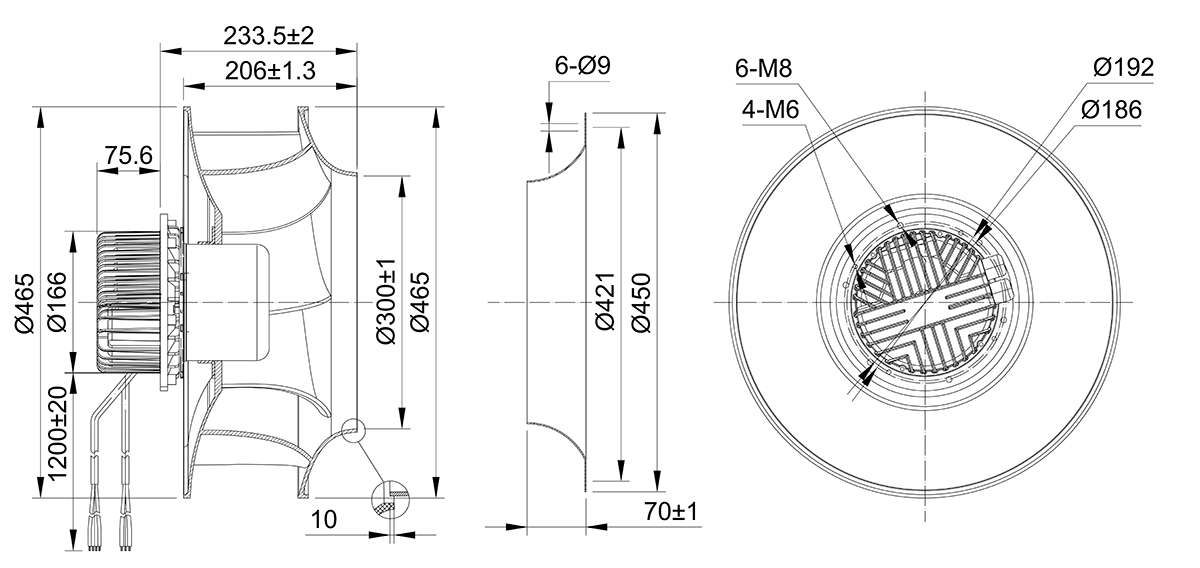

B3E-3A450-Y3-01

B3E-3A450-Y8-14

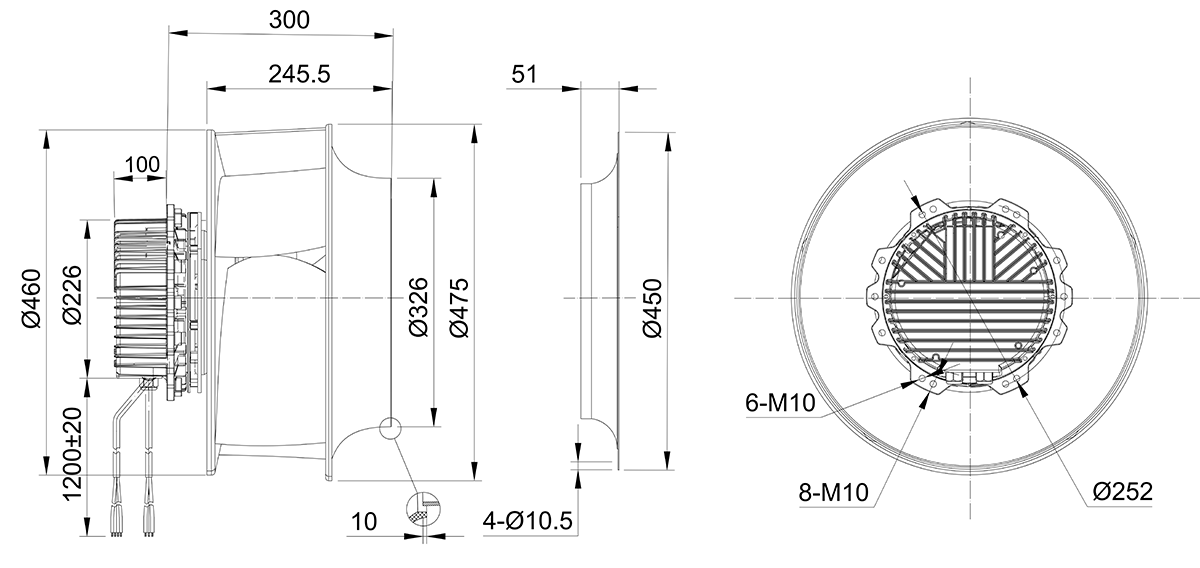

B3E-3A450-Y8-15
