Model No. S3E-2A160-A7-01
Voltage Type: 220VAC
Motor Type: EC Brushless External Rotor Motor
Impeller Diameter: 160mm
Impeller Material: PA66
Housing Material:Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP44
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Over-temperature, Over-current, Locked Protected

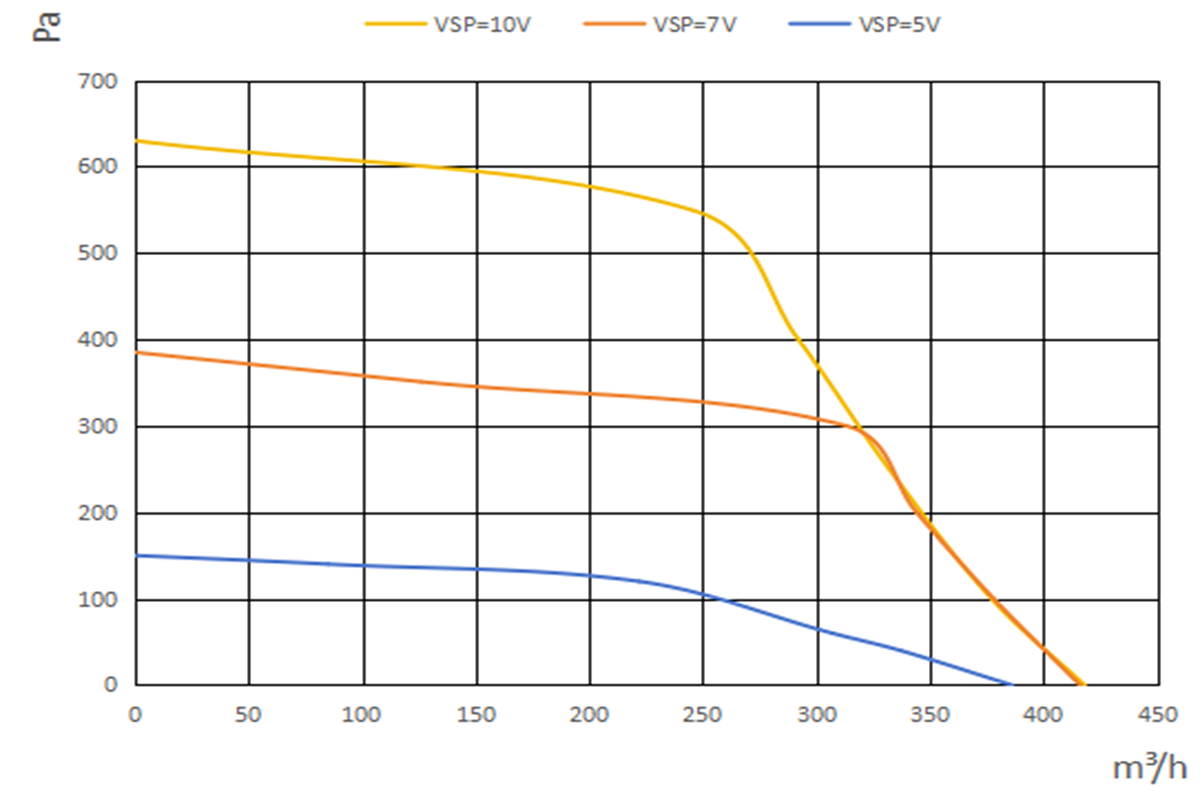

| Model No. | Bearing System | Rated Voltage | Frequency | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VAC | Hz | A | W | RPM | M³/H | Pa | dBA | |
| S3E-2A160-A7-01 | Ball | 220 | 50/60 | 0. 6 | 80 | 1500 | 420 | 630 | 52 |
