Model No. S3E-2A180-A2-03
Voltage Type: 220VAC
Motor Type: EC Brushless External Rotor Motor
Impeller Diameter: 180mm
Impeller Material: PA66
Housing Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP44
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Over-temperature, Over-current, Locked Protected

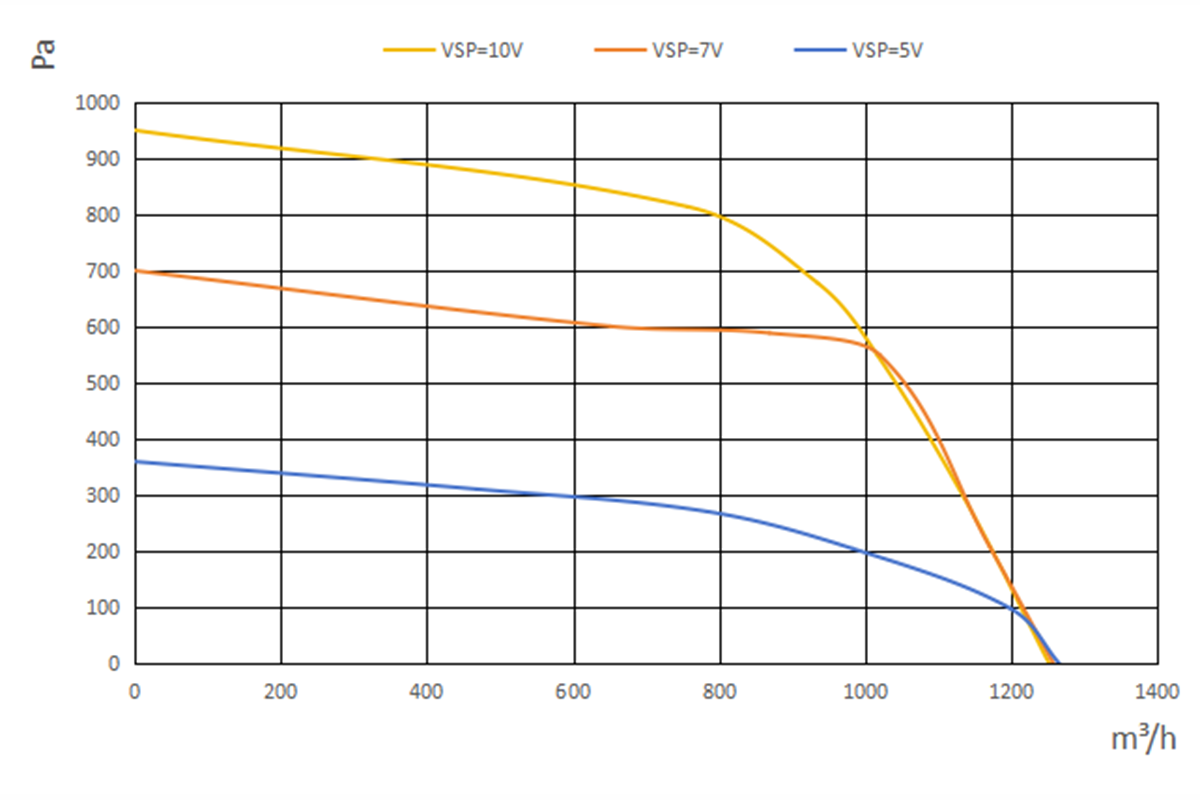

| Model No. | Bearing System | Rated Voltage | Frequency | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VAC | Hz | A | W | RPM | M³/H | Pa | dBA | |
| S3E-2A180-A2-03 | Ball | 220 | 50/60 | 1. 3 | 300 | 1600 | 1250 | 950 | 74 |
