Voltage Type: AC
Motor Type: EC Brushless External Rotor Motor
Impeller Diameter: 133mm
Impeller Material: Galvanized Steel
Housing Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP44
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Locked-Rotor Protection, Reverse Polarity Protection, Thermal Protection, Soft Start

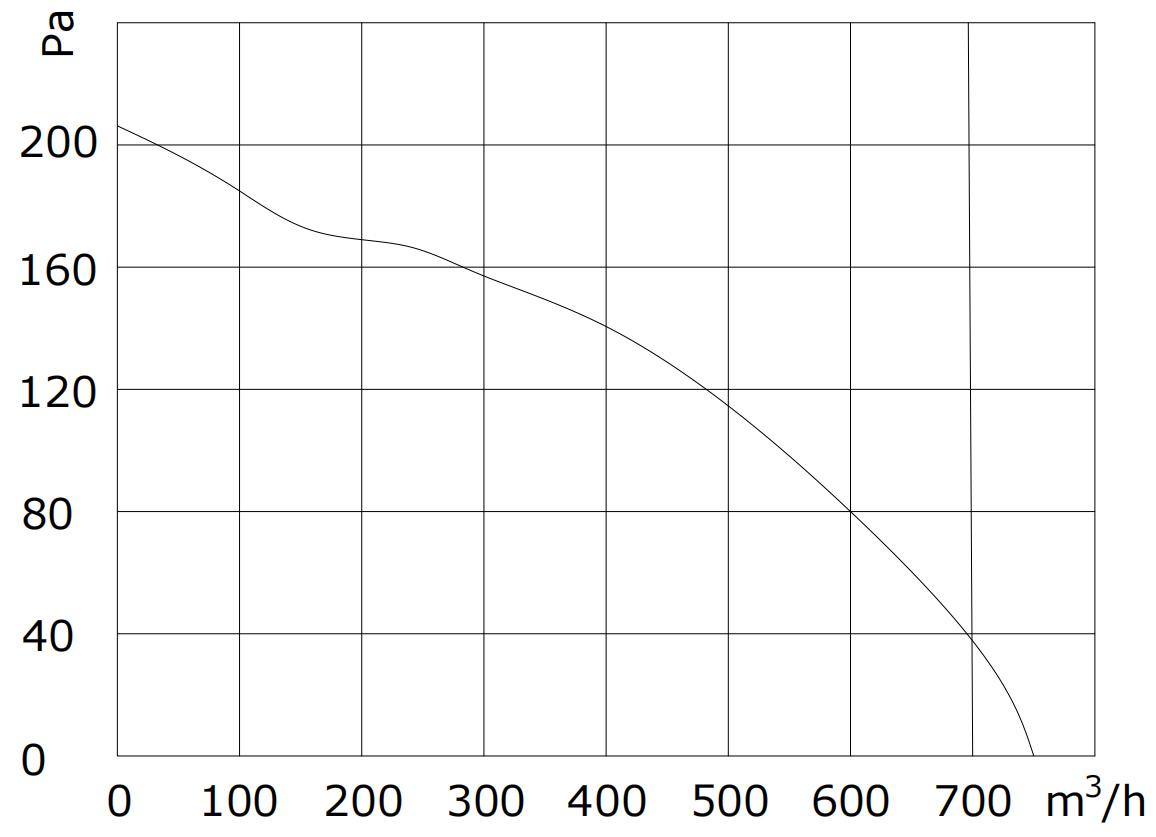

| Model No. | Bearing System | Rated Voltage | Frequency | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VAC | Hz | A | W | RPM | m³/h | Pa | dBA | |
| D3E-2A133-S7-00 | Ball | 230 | 50/60 | 0.75 | 105 | 1500 | 752 | 205 | 64 |
As renewable energy continues to make up a larger share of the global power supply, the systems responsible for generating, storing, and distributing that energy must meet ever-higher standards for efficiency, reliability, and durability. At Seemtek, our advanced, intelligently controlled fans are designed to meet these demands—ensuring effective thermal management across a wide range of renewable energy applications. Drawing on our deep industry experience and commitment to innovation, we support the long-term, stable operation of electric vehicle charging stations, energy storage units, solar inverters, and other clean energy infrastructure.
In the design of ventilation equipment, human health and comfort are key considerations. The low-noise, high-performance fans offered by Seemtek ensure optimal airflow while enhancing comfort and promoting a healthy environment. By integrating Seemtek’s energy-efficient drive systems and intelligent control technologies, our biomimetic fans deliver stable and efficient performance in a wide range of applications, maintaining low noise levels that are almost imperceptible. The ideal modern ventilation system is quiet, discreet, and highly reliable, achieving excellent energy efficiency and economic operation through precise control and intelligent adjustment based on demand.
Many manufacturers and suppliers in the railway industry choose Seemtek fans for their reliable performance and outstanding quality. Seemtek offers a comprehensive range of railway fan products, including single/double inlet forward-curved centrifugal fans, backward-curved centrifugal fans, and axial fans, with customization available to meet specific airflow requirements. Our fans are widely used in various applications such as driver cabin air conditioning, cooling of traction and braking system components, passenger compartment ventilation and air conditioning, electrical cabinet ventilation and electronic equipment cooling, as well as onboard power system component cooling.
Seemtek 230V EC Motor 108mm Small Quiet Blower Fan with Forward Curve Impeller
