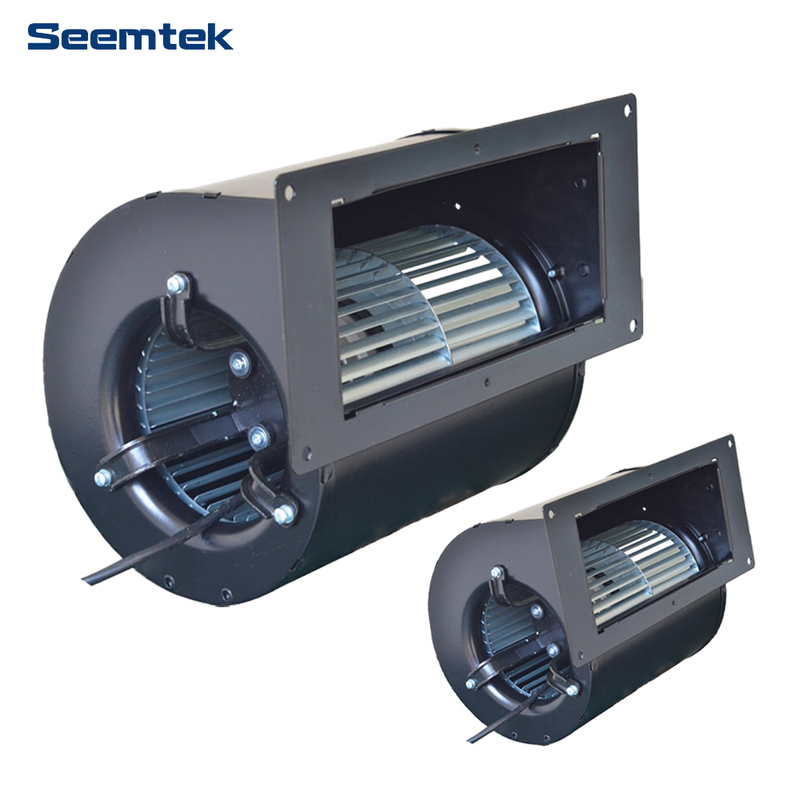

Model No. D3D-48133-A9-02
Voltage Type: 48VDC
Motor Type: DC Brushless External Rotor Motor
Impeller Diameter: 133mm
Impeller Material:Galvanized Steel
Housing Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP42
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Over-temperature, Over-current, Locked Protected
| Model No. | Bearing System | Rated Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VDC | A | W | RPM | M³/H | Pa | dBA | |
| D3D-48133-A9-02 | Ball | 48 | 1. 7 | 80 | 1600 | 660 | 320 | 64 |
