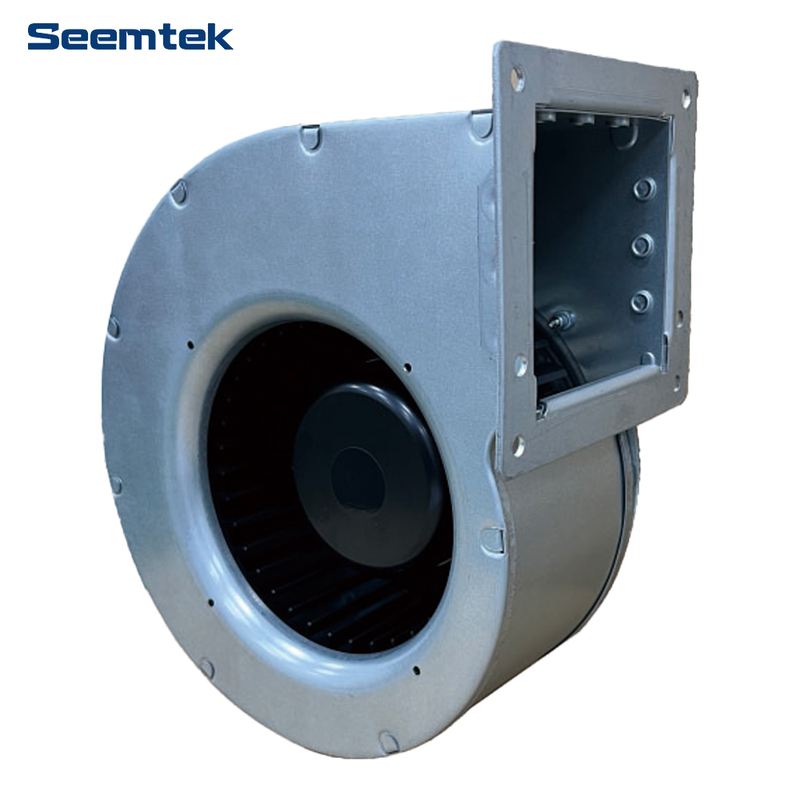

Model No. S3D-48140-A7-01
Voltage Type: 48VDC
Motor Type: DC Brushless External Rotor Motor
Impeller Diameter: 140mm
Impeller Material: PA66
Housing Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP42
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Over-temperature, Over-current, Locked Protected
| Model No. | Bearing System | Rated Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VDC | A | W | RPM | M³/H | Pa | dBA | |
| S3D-48140-A7-01 | Ball | 48 | 1. 67 | 80 | 1800 | 450 | 385 | 65 |
