Model No. S3D-48180-A9-01
Voltage Type: 48VDC
Motor Type: DC Brushless External Rotor Motor
Impeller Diameter: 180mm
Impeller Material: PA66
Housing Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP42
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Over-temperature, Over-current, Locked Protected

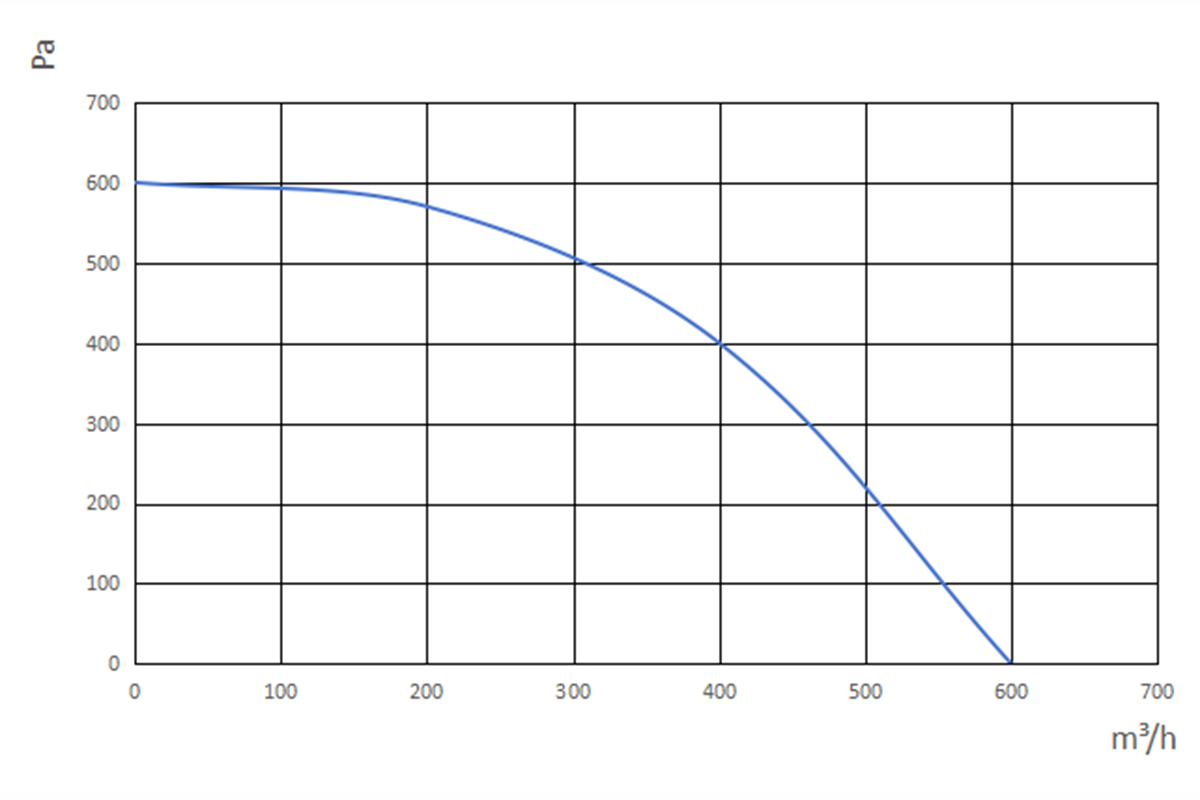

| Model No. | Bearing System | Rated Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VDC | A | W | RPM | M³/H | Pa | dBA | |
| S3D-48180-A9-01 | Ball | 48 | 1. 9 | 90 | 1250 | 600 | 600 | 67 |
