Model No. D3E-3A250-A3-02
Voltage Type: 380VAC
Motor Type: EC Brushless External Rotor Motor
Impeller Diameter: 250mm
Impeller Material: Galvanized Steel
Housing Material: Galvanized Steel
Speed Control: 0-10VDC/PWM
Protection Type: IP44
Insulation Class: B
Operation Temperature : - 25 ℃ ~ +60 ℃
Motor Protection: Over-temperature, Over-current, Locked Protected

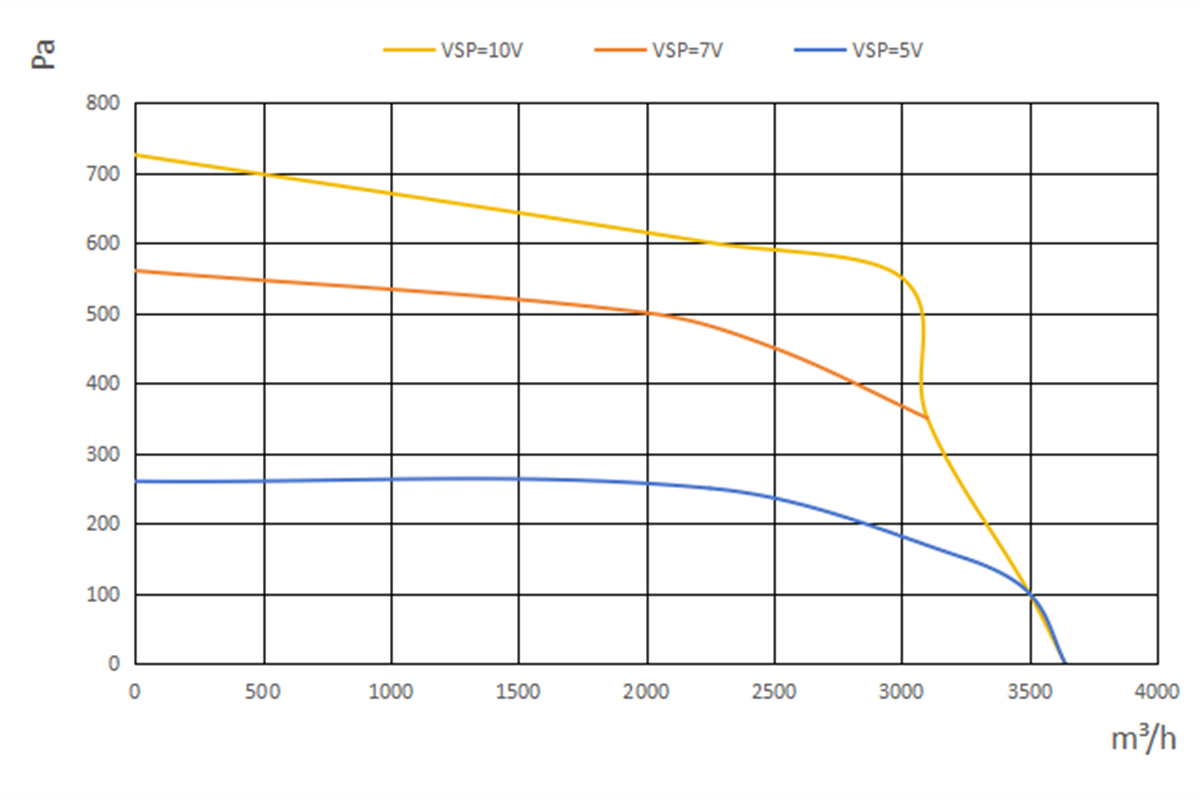

| Model No. | Bearing System | Rated Voltage | Frequency | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| B/S | VAC | Hz | A | W | RPM | M³/H | Pa | dBA | |
| D3E-3A250-A3-02 | Ball | 380 | 50/60 | 1. 2 | 655 | 920 | 3640 | 725 | 74 |
